Roof tiles systems & products
Kiln furniture.
For firing roofing tiles, Refratechnik Ceramics offers kiln furniture in dry-pressed and cast versions:

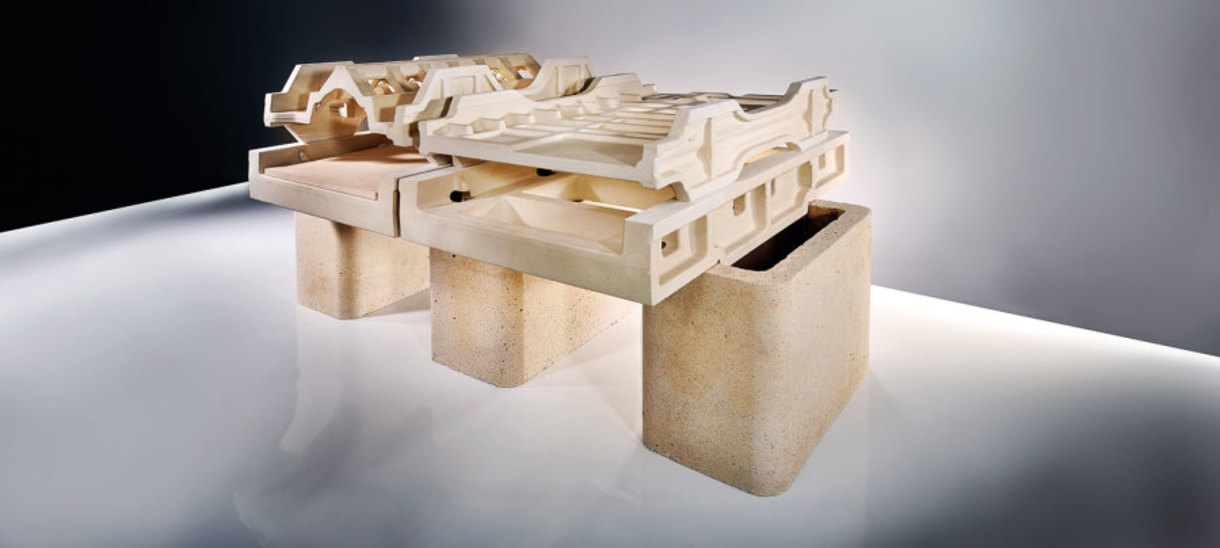

H-cassettes and base frames
For firing high-quality roofing tiles, the H-cassette system offers decisive advantages:
For the passage through the kiln, the individual roofing tiles are placed in specially designed H-cassettes, which ensure homogeneous firing without sagging. In particular, the use of H-cassettes is required when firing enamelled and glazed roofing tiles, as this results in considerably less adhesion.
Base frames serve for the underfloor ventilation of the loaded kiln car. The stacked H-cassettes are supported by a single furniture item, which has the same thermal expansion coefficient to prevent additional stresses.
For the passage through the kiln, the individual roofing tiles are placed in specially designed H-cassettes, which ensure homogeneous firing without sagging. In particular, the use of H-cassettes is required when firing enamelled and glazed roofing tiles, as this results in considerably less adhesion.
Base frames serve for the underfloor ventilation of the loaded kiln car. The stacked H-cassettes are supported by a single furniture item, which has the same thermal expansion coefficient to prevent additional stresses.
Ridge tile and accessory cassettes
Due to their very complex geometries, ridge tiles and accessory cassettes are produced exclusively by means of the casting method.
BURTON® ridge tile cassette
Accessory
U-cassettes and ribbed cassettes
Dry-pressed U-cassettes are featured by tight tolerances and a long service life. Compared with cast U-cassettes, they are less sensitive during mechanical handling. Perforated ribbed U-cassettes have a considerably lower weight. This saves energy, as the mass to be heated up is far less.
U-cassette
Single-layer firing
Single-layer firing
Single-layer firing permits a lightweight and energy-saving kiln car design. Widely spaced supports result in less weight of the intermediate structure. Due to this design, the kiln car is reduced to a pure insulation carrier, which must exhibit adequate strength.
